Spesifikasi Tata starbus LP 713 Medium Bus

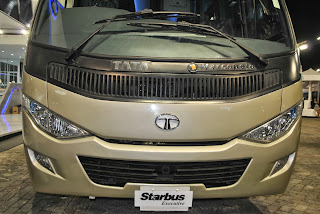

berikut spesifikasi Tata starbus LP 713 yang ditampilkan di IIMS 2013




Engine
Type : Tata 697 TCIC E2
Engine Capacity : 5675 cc
Max Power : 128 HP @ 2400 rpm
Torque : 416 Nm @ 1400-1700 rpm

Clutch
Type : single plate dry friction type, booster assisted
Outside Diameter : 310 mm

Gearbox
Model : GBS-40 Synchomesh
No. Of Gears : 5 F + 1 R
Steering : Power Steering

Suspension
Tyre : Semi elliptical leaf spring at front and rear
Anti-roll Bar : at front and rear

Brakes
Service Brakes : Dual circuit fill air S-cam brake
Parking brake : Spring actuated parking brake acting on rear wheels
Engine Exhaust Brake : Coupled with service brake
Front/Rear type : drum/drum
Wheels & Tyres
Tyres : 7.5 R 16 - 14 PR
No. Of wheels : front 2, rear 4, spare :1

Fuel Tank : 120 liters

Performance
Max geared speed in top gear : 112 kpmh
Max. Climbing Ability in 1st gear : 30%
Min. Tuning cicrle diameter : 13.5m

Dimensions & weights
Wheelbase : 3800 mm
Track-Front/Rear : 1650 mm/1577 mm
Overall Bus Length : 7510 mm
Overall Bus Width : 2200 mm
Overall Height : 2800 mm
GVW : 7700 kgs

Seating Capacity Door : 28+1 seats (2x2 layout) - 1 door, 30+1 seats - 1 door (2xe layout)

Ac/Non Ac : available in ac/non ac
